Plywood reels
Reels are essential for the transport and packaging of wrapable materials. Our plywood reels are strong, cost-effective, and suitable for single and multiple use. We customize dimensions and materials to your specifications and offer expert advice tailored to your needs.
Flexible cords
and torsion cables
Cables for cable trays
and -chains
Fiber optic cables

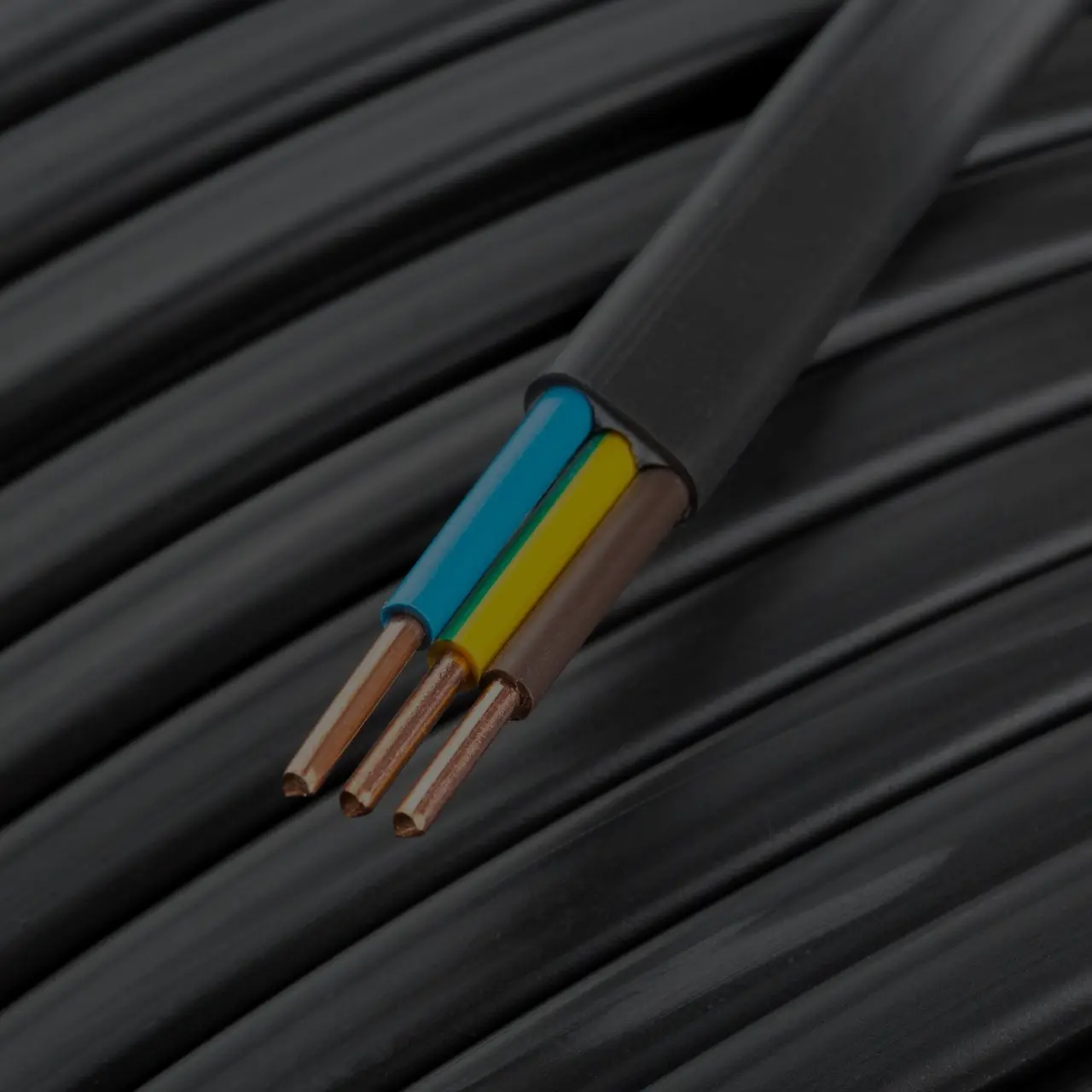

Single core, twisted-pair,
coaxial and triaxial cables
Cable types
Our broad customer base demonstrates that our reels are suitable for various materials, ranging from fiberglass, steel wire to marine rope.
Cable types
Our broad customer base demonstrates that our reels are suitable for various materials, ranging from fiberglass, steel wire to marine rope.

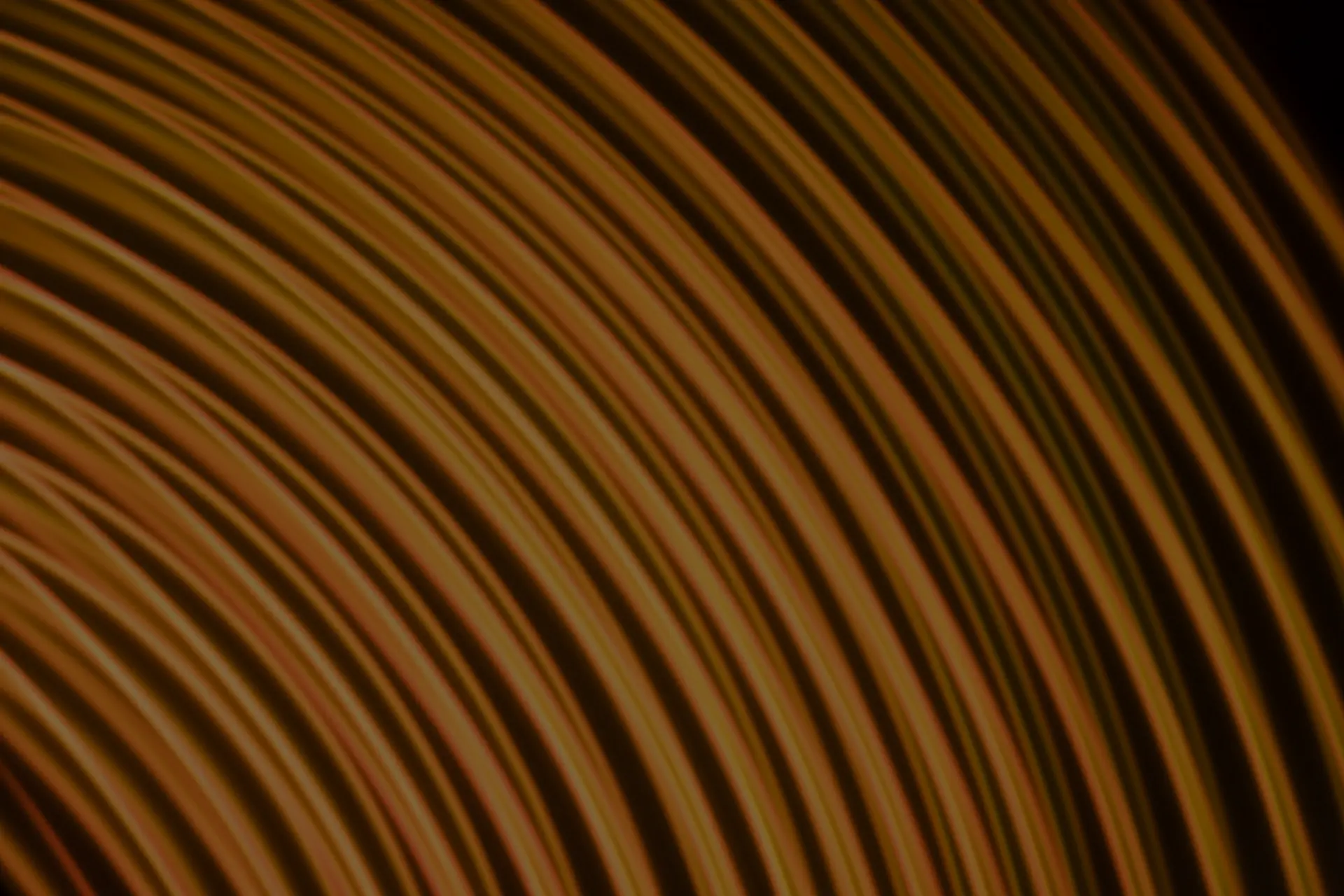

Flexible cords
and torsion cables
Cables for cable trays
and -chains
Fiber optic cables

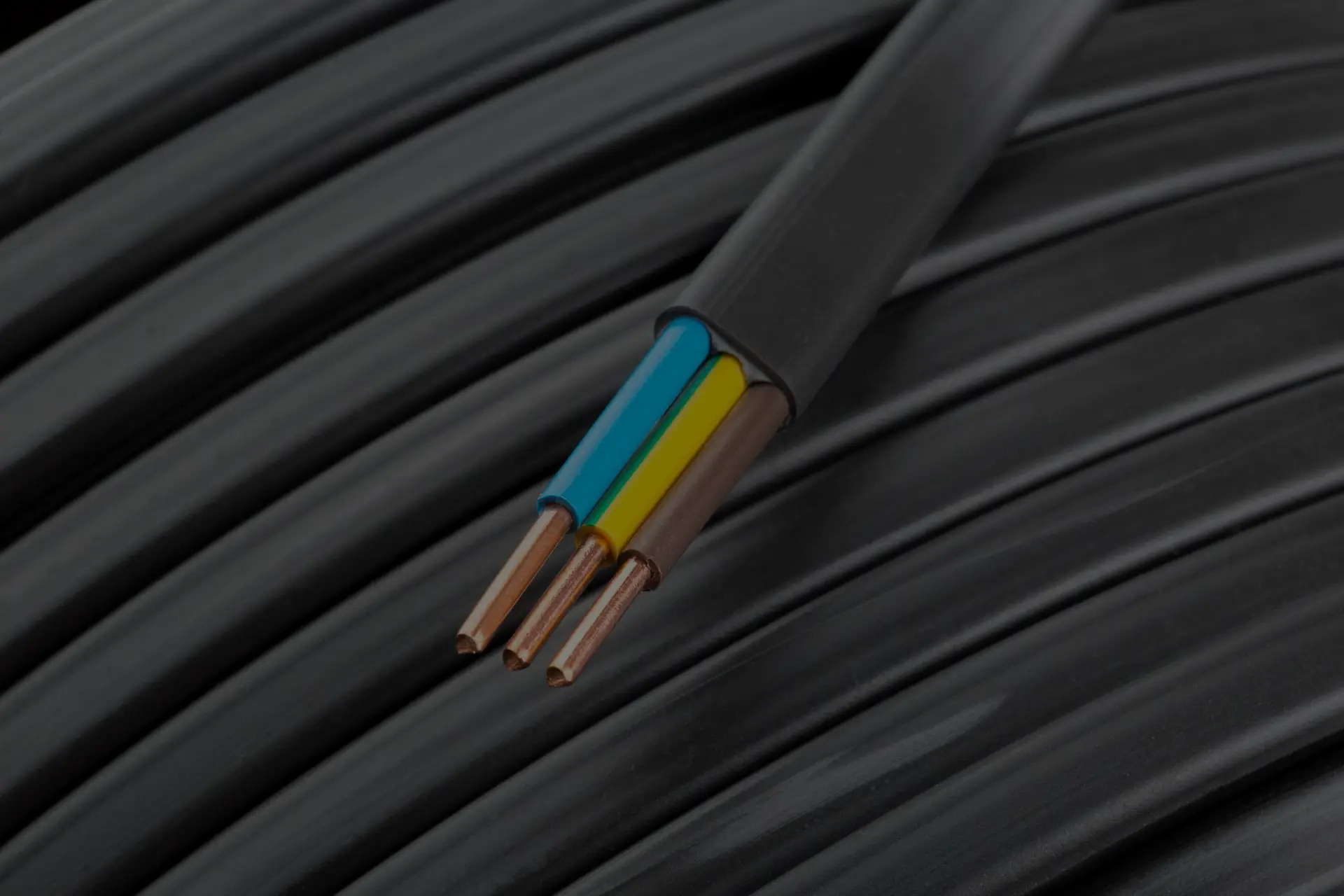

Single core, twisted-pair,
coaxial and triaxial cables
Sectors
- Industry: instrumentation, automation
- Energy (wind, sun, energy transport)
- Transport (automotive, railways, aerospace)
- Data communication
- Telecommunications
- Fiber optics
- Consumer electronics
- Heating
- Lighting
Sectors
- Industry: instrumentation, automation
- Energy (wind, sun, energy transport)
- Transport (automotive, railways, aerospace)
- Data communication
- Telecommunications
- Fiber optics
- Consumer electronics
- Heating
- Lighting
Properties
We produce reels in various materials and sizes, fully tailored to your specific requirements. Our extensive quality controls ensure a consistently high standard, and you can always request a prototype for testing.
Reels

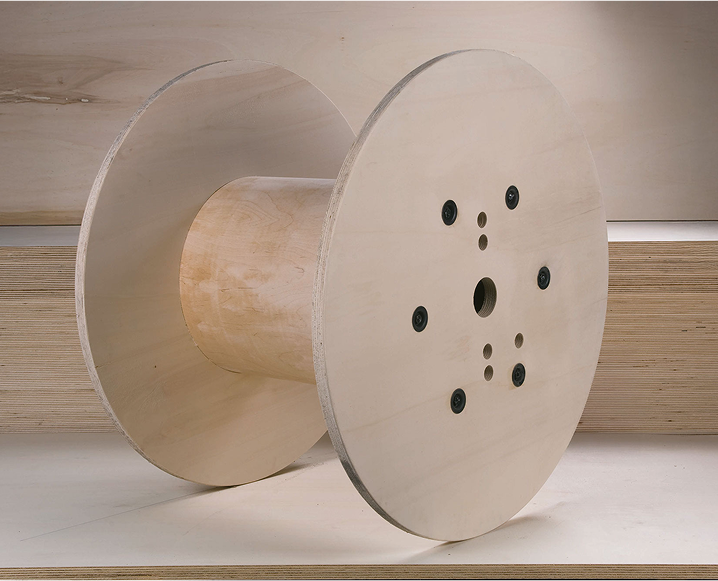

Each cable reel consists of two outer flanges and a cylindrical core. The dimensions are usually referred to as AAA x BBB x CCC, where:
AAA: the flange diameter (in mm)
BBB: the core diameter (in mm)
CCC: the winding width (in mm)

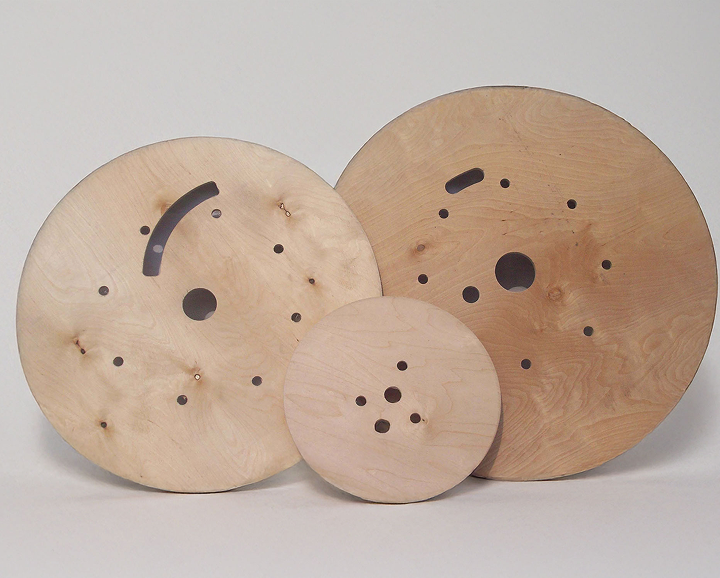

Flanges
Materials
Birch, pine, poplar, eucalyptus, or other types of plywood. Solid wood, OSB, MDF, HDF, or hardboard are also available.
Dimensions
Diameter: Ø100 mm tot Ø1520 mm
Thickness: 3 mm to 36 mm
We can create flange holes (driver holes, cable holes) in almost any shape, according to the customer's wishes. Printing with logos or barcodes, and coatings such as waterproof layers, are among the possibilities.

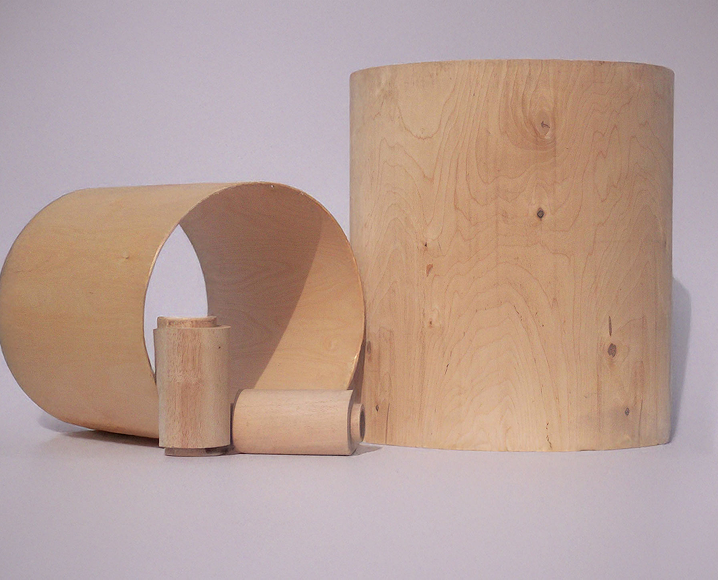

Cores
Materials
Plywood, hardboard, MDF, cardboard, plastic, or solid wood.
Dimensions
Diameter: Ø80 mm to Ø1000 mm
We can provide core holes according to customer specifications. The cores can be built up in layers to meet specific requirements.

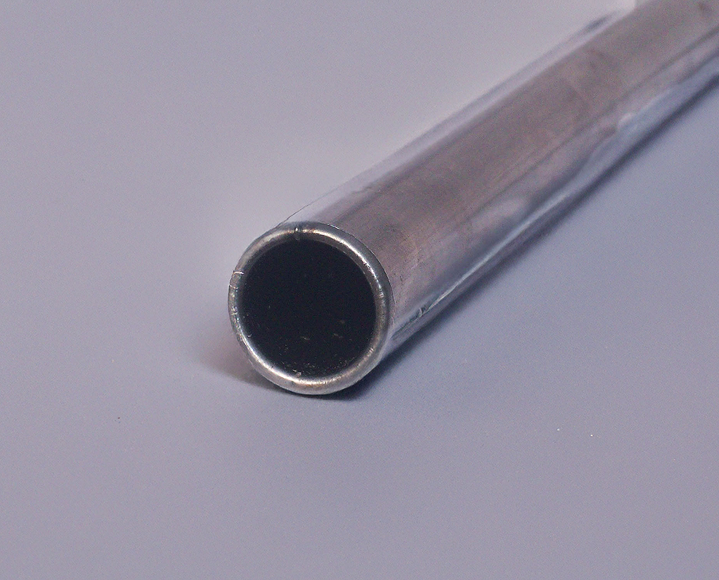

Assemblies
Materials

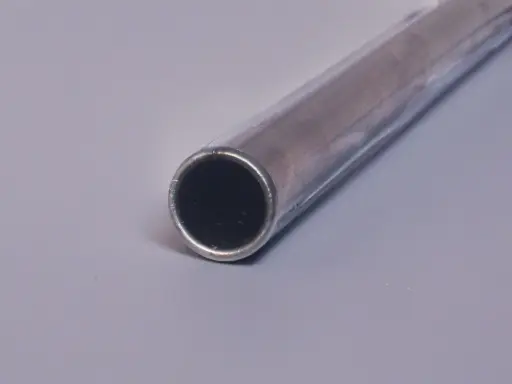

Steel tubes (flared), threaded rods, glue.
The assembly plays a crucial role in the load-bearing capacity and support of the core.
We offer additional fastening materials such as washers and lock nuts, and can provide the flanges with countersinks.
Properties
We produce reels in various materials and sizes, fully tailored to your specific requirements. Our extensive quality controls ensure a consistently high standard, and you can always request a prototype for testing.

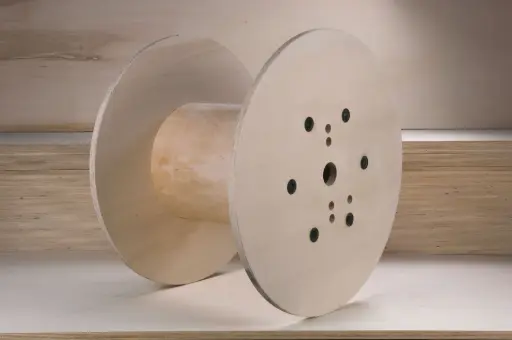

Reels
Each cable reel consists of two outer flanges and a cylindrical core. The dimensions are usually referred to as AAA x BBB x CCC, where:
AAA: the flange diameter (in mm)
BBB: the core diameter (in mm)
CCC: the winding width (in mm)
Flanges
Materials
Birch, pine, poplar, eucalyptus, or other types of plywood. Solid wood, OSB, MDF, HDF, or hardboard are also available.
Dimensions
Diameter: Ø100 mm to Ø1520 mm Thickness: 3 mm to 36 mm.
We can create flange holes (driver holes, cable holes) in almost any shape, according to the customer's wishes. Printing with logos or barcodes, and coatings such as waterproof layers, are among the possibilities.

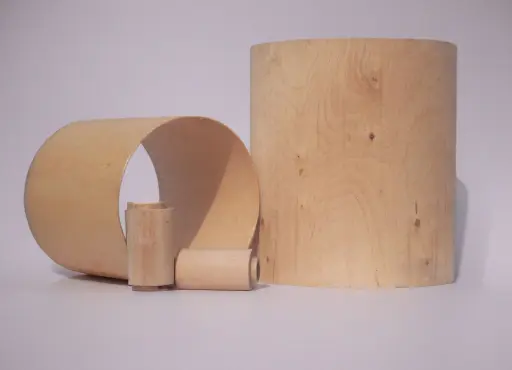

Cores
Materials
Plywood, hardboard, MDF, cardboard, plastic or solid wood.
Dimensions
Diameter: Ø80 mm to Ø1000 mm
We can provide core holes according to customer specifications. The cores can be built up in layers to meet specific requirements.
Assemblies
Materials

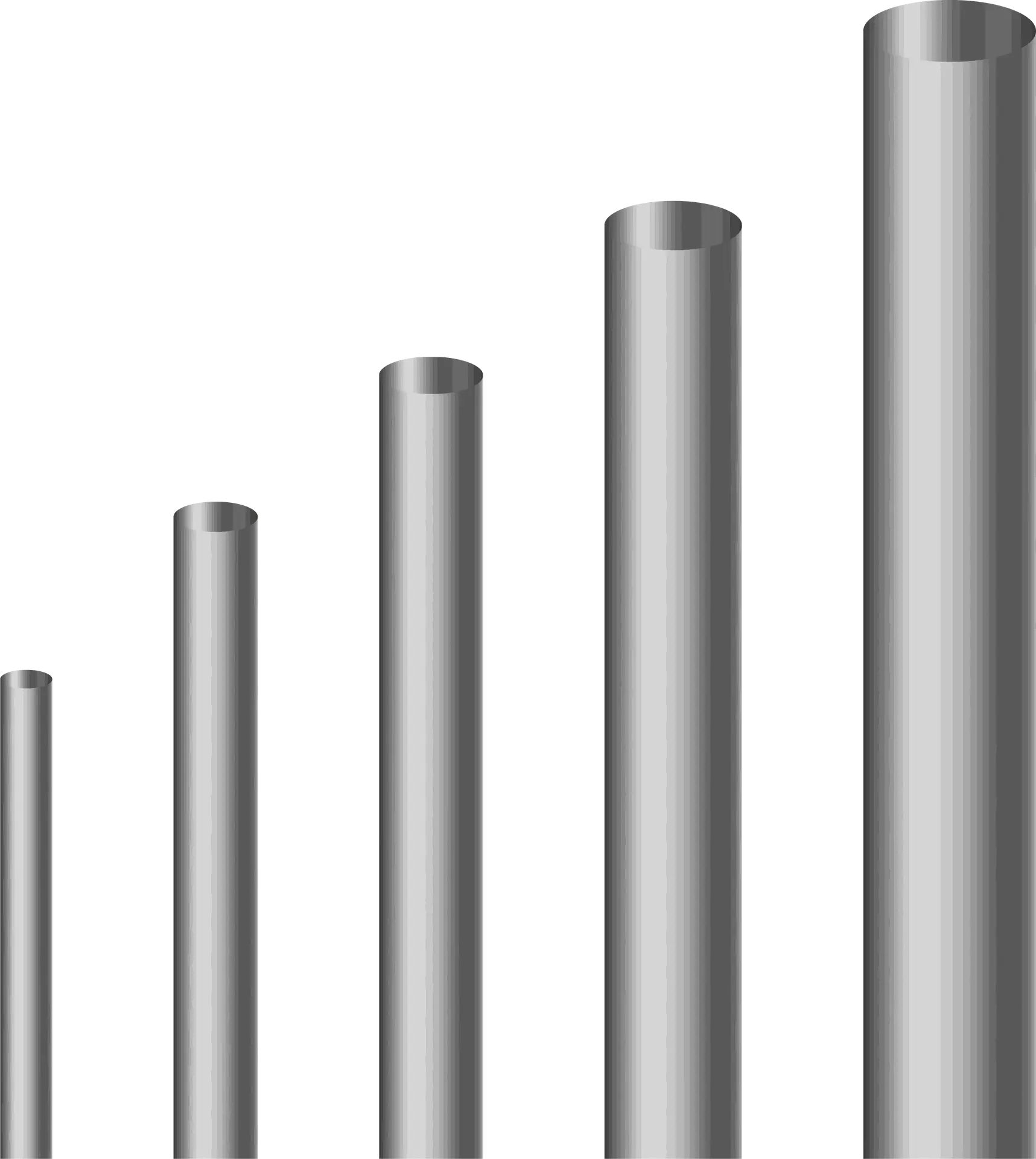

Steel tubes (flared), threaded rods, glue.
The assembly plays a crucial role in the load-bearing capacity and support of the core.
We offer additional fastening materials such as washers and lock nuts, and can provide the flanges with countersinks.
Assembly kits
We think along with you and offer innovative solutions such as our assembly kits, specially developed for a global player in the cable industry.
Assembly kits
We think along with you and offer innovative solutions such as our assembly kits, specially developed for a global player in the cable industry.
